Molex stAK50h Unsealed Connection System incorporates unsealed hybrid connectors to deliver signal and Ethernet connectivity in one low-footprint connector. Signal and Ethernet connectivity is processed through just one stAK50h connector interface, eliminating the need for two separate connection systems. Molex stAK50h Connectors feature industry-approved 0.50mm and 1.20mm terminal sizes. These terminals are designed to fit AK-based terminal cavities in the receptacle housings for a variety of connectivity needs. This Molex automotive connector series is ideal for use in high-density, low-current signal (4.0A) and Ethernet communication applications.

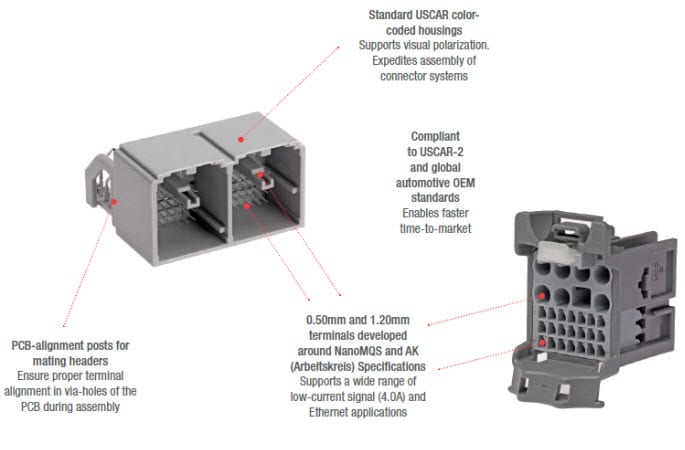

Features
Standard USCAR color-coded housings
Supports visual polarization
Expedites connector system assembly
Compliant to USCAR-2 and global automotive OEM standards
Enables faster time-to-market
PCB-alignment posts for mating headers
Ensures proper terminal alignment in via-holes of the PCB during assembly
0.50mm and 1.20mm terminals developed around NanoMQS and AK (Arbeitskreis) Specifications
Supports a wide range of low-current signal (4.0A) and Ethernet applications
