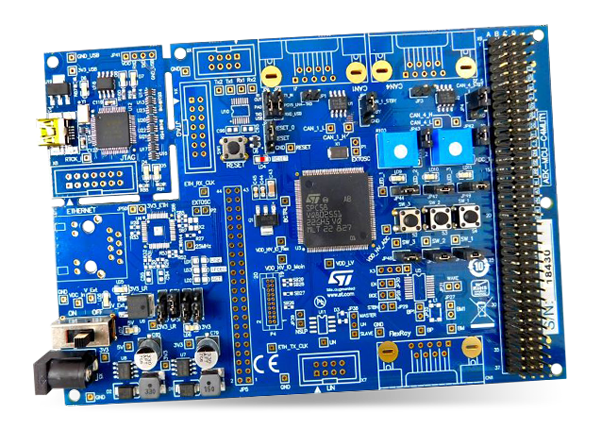

STMicroelectronics AEK-MCU-C4MLIT1 MCU Discovery Board
STMicroelectronics AEK-MCU-C4MLIT1 MCU Discovery Board is used to address automotive and transportation applications. The STMicroelectronics board can be used for applications requiring automotive safety and security levels. The Hardware Secure Module (HSM) is embedded in the SPC58EC80E5 MCU, allowing it to comply with the EVITA Medium standard.
The board exploits the functionality of the SPC58EC80E5 32-bit automotive grade ASIL-B microcontroller with 4 MB flash, full access to the two MCU cores, GPIOs, and peripherals like ISO CAN FD (with transceiver) and UART.
The board hosts a PLS debugger/programmer and an extension connector (4x37 pins) for functional interaction across boards compatible with the AutoDevKit initiative. The PLS Universal Debug Engine (UDE) software is available for free download and includes a free, perpetual 256Kbyte debugging/programming license.
Features
- SPC58EC80E5 microcontroller 32-bit Power architecture e200z4d dual-core, 4224kB flash + 128kB data flash in an eTQFP144 package
- Integrated programmer and debugger
- 2 integrated ISO CAN FD transceivers
- 1 USB virtual COM Port (USB cable not included)
- 3 user push buttons and 3 user LEDs
- 2 potentiometers for ADC quick evaluation
- Reset button
- All GPIOs and signals accessible by a 4x37 connector
- 12VDC (external power supply not included) board supply
- 150mm x 101mm board size
- All ST components are qualified Automotive grade
- CE certified; RoHS and China RoHS compliant
- WEEE compliant (2012/19/UE RAEE II)
- Part of the AutoDevKit™ initiative
